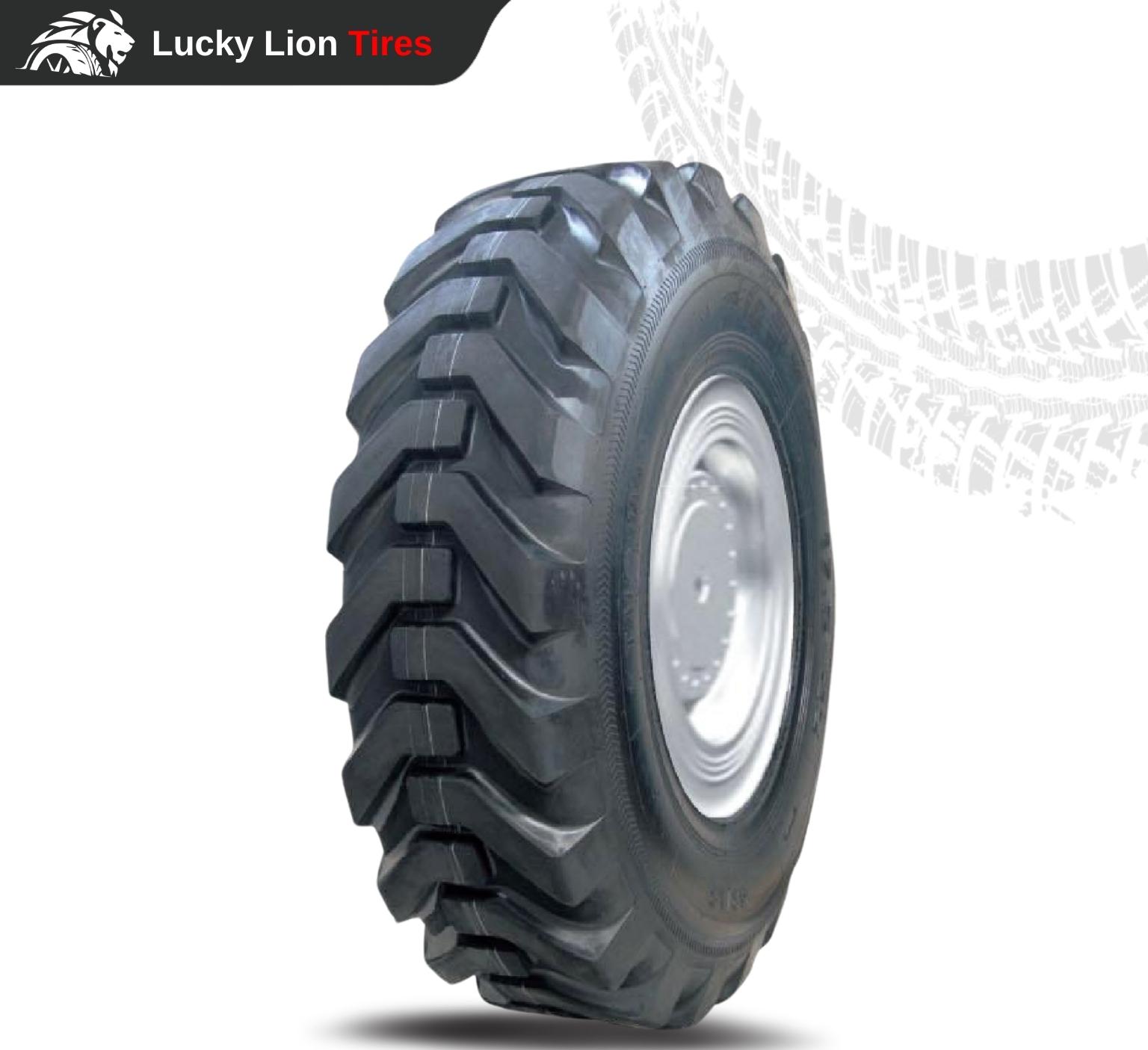

Wide-footprint version for heavier blades. Deep, open lugs clear clay while the flat crown spreads weight on soft soil.
6 – 24 ply range handles 9 500 kg @ 10 km/h (23.5-25, 24PR) with pressures down to 200 kPa to minimise rutting.
Fully compliant with GCC/GSO, SASO, SONCAP, ECE & DOT—dealers cover most mid-size graders with one pattern.
| Size | PR | Overall Diameter (mm) | Section Width (mm) | Rim | Max Load (kg)@ 10 km/h | Max Load (kg)@ 50 km/h | Inflated Pressure (kPa)@ 10 km/h | Inflated Pressure (kPa)@ 50 km/h | Pattern |
|---|---|---|---|---|---|---|---|---|---|
| 1300-24 | 12 | 1 278 | 333 | 8.00 TG | 5 600 | 2 725 | 450 | 300 | G2/L2 |
| 1400-24 | 16 | 1 348 | 362 | 8.00 TG | 7 300 | 3 650 | 550 | 350 | G2/L2 |
| 15.5-25 | 12 | 1 275 | 395 | 12.00/1.3 | 5 600 | 3 250 | 400 | 250 | G2/L2 |
| 17.5-25 | 16 | 1 350 | 445 | 14.00/1.5 | 7 300 | 4 250 | 475 | 300 | G2/L2 |
| 20.5-25 | 16 | 1 493 | 521 | 17.00/2.0 | 8 250 | 4 000 | 350 | 225 | G2/L2 |
| 23.5-25 | 16 | 1 617 | 597 | 19.50/2.5 | 9 500 | 4 750 | 300 | 200 | G2/L2 |
