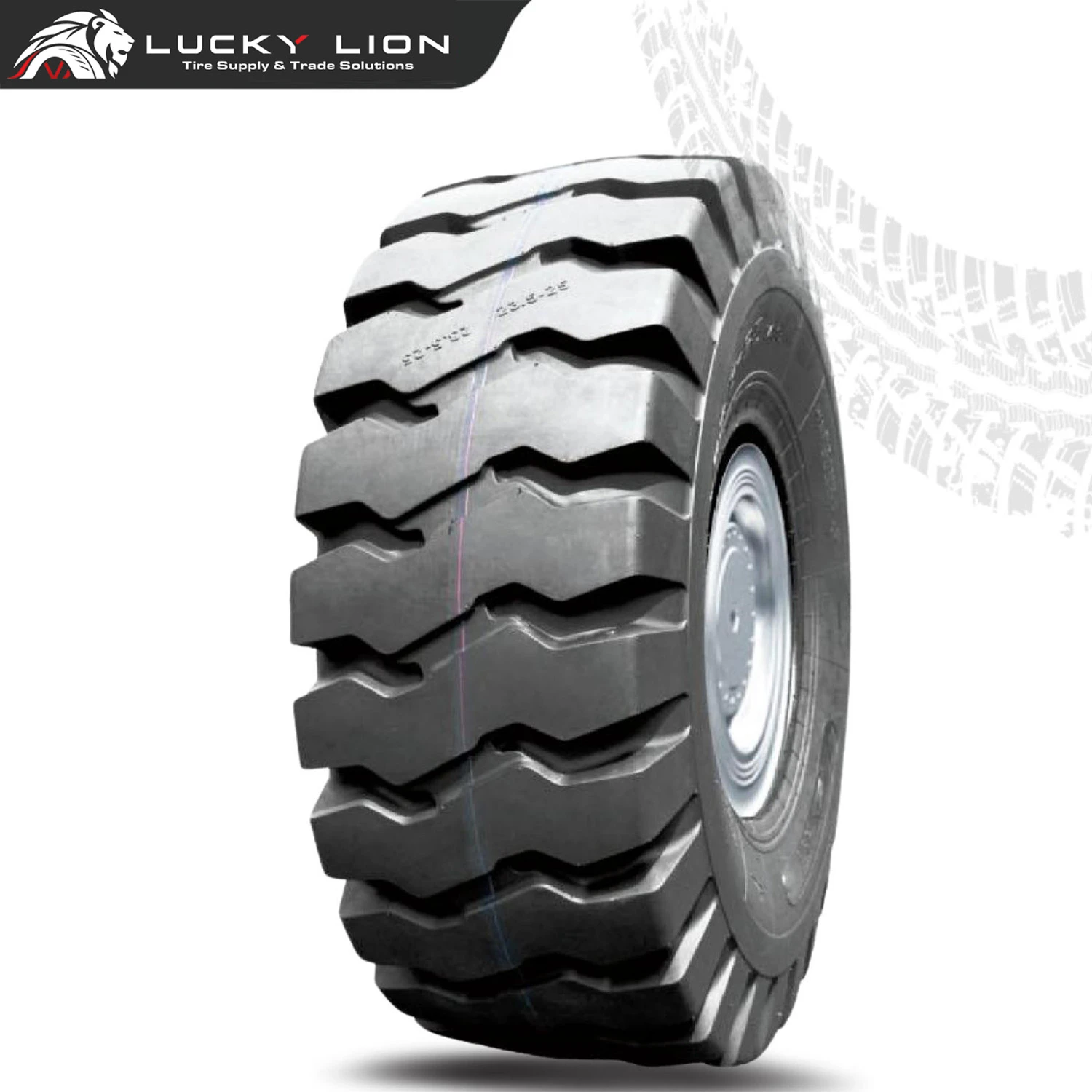

Lucky Lion E3/L3 (W4) Wide-Footprint OTR Tyre
Lucky Lion E3/L3 (W4) is a wide-footprint OTR tyre for soft or muddy job sites, with a focus on a larger contact area and lower ground pressure.
Product Positioning
E3/L3 (W4) uses a wide-footprint tread design with wider shoulders and deeper grooves to support flotation on soft or muddy ground. The heavy-duty carcass matches the 23.5-25 specification with load data up to 12 500 kg @ 10 km/h.
Key Note: Wide footprint construction, lower ground pressure, deeper grooves and silica-reinforced rubber make this tyre suitable for OTR working conditions where traction, flotation, heat resistance and cut resistance are important.
Product Features
- Wide-footprint tread helps increase the contact area and reduce ground pressure.
- Wider shoulders and deeper grooves are suitable for soft or muddy job sites.
- Heavy-duty carcass structure supports high-load OTR operation.
- Silica-reinforced rubber helps address heat and cutting conditions.
- Certification information includes GCC/GSO, SASO, SONCAP, ECE and DOT.
Specifications
| Size | PR | Overall Diameter (mm) | Section Width (mm) | Rim | Max Load (kg) @ 10 km/h | Max Load (kg) @ 50 km/h | Inflated Pressure (kPa) @ 10 km/h | Inflated Pressure (kPa) @ 50 km/h | Pattern |
|---|---|---|---|---|---|---|---|---|---|
| 23.5-25 | 20 | 1 615 | 595 | 19.50/25 | 10 900 | 7 300 | 375 | 300 | E3/L3 (W4) |
| 23.5-25 | 24 | 1 615 | 595 | 19.50/25 | 12 500 | 8 000 | 475 | 50 | E3/L3 (W4) |
Certification Information
The certification information for this product includes GCC/GSO, SASO, SONCAP, ECE and DOT.
Inquiry Note: Please share the required size, PR, quantity, destination market and certification requirements so Lucky Lion Tire can confirm a suitable supply option.
